Leaderboards menu overview - Weekly leaderboard - (Unity module)

Last updated on June 12, 2024

What's on the menu​

In this tutorial, you will learn about the components available in Byte Wars for periodic leaderboards. Since a periodic leaderboard is part of the AccelByte Gaming Services (AGS) Leaderboard service, you will reuse all the Leaderboard Menu user interface (UI) from All time leaderboard.

As a reminder, these prepared files are available in the Resources section and consist of the following:

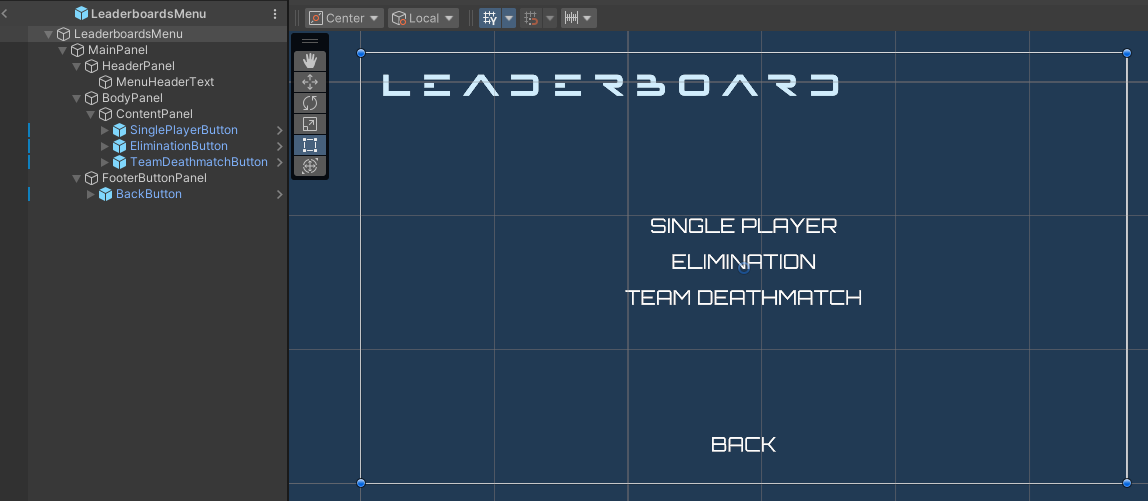

  • LeaderboardSelectionMenuCanvas_Starter: A UI menu that displays all available leaderboard lists.
    • CS file: /Assets/Resources/Modules/LeaderboardEssentials/Scripts/UI/LeaderboardSelectionMenu_Starter.cs
    • Prefab file: /Assets/Resources/Modules/LeaderboardEssentials/Prefabs/LeaderboardSelectionMenuCanvas_Starter.prefab

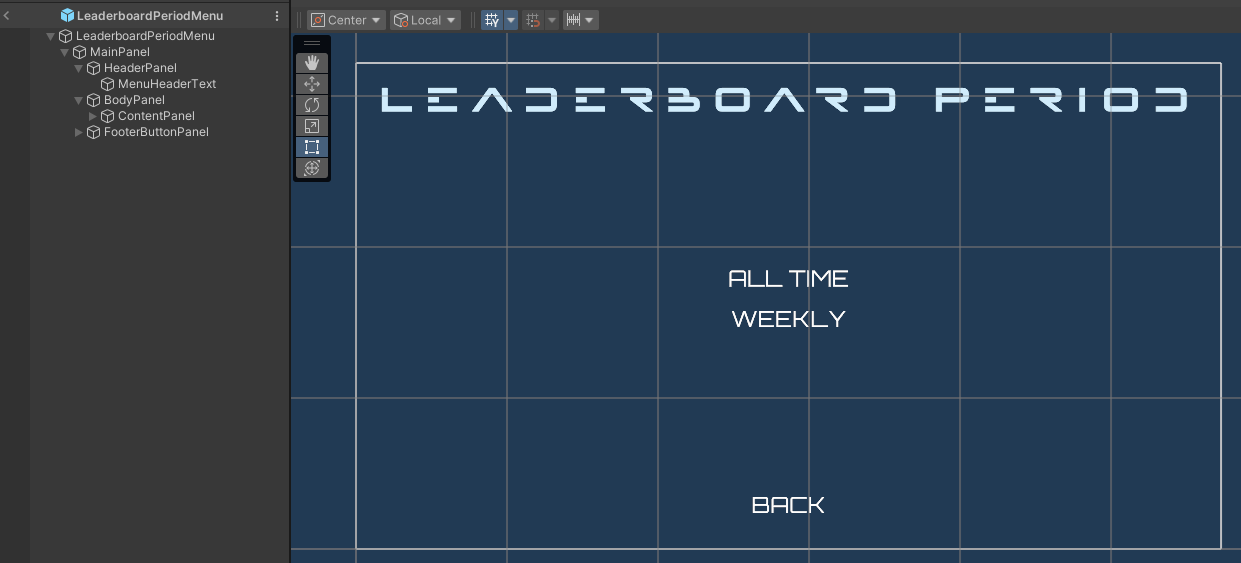

  • LeaderboardCycleMenuCanvas_Starter: A UI menu that displays all available leaderboard period options.
    • CS file: /Assets/Resources/Modules/LeaderboardEssentials/Scripts/UI/LeaderboardCycleMenu_Starter.cs
    • Prefab file: /Assets/Resources/Modules/LeaderboardEssentials/Prefabs/LeaderboardCycleMenuCanvas_Starter.prefab

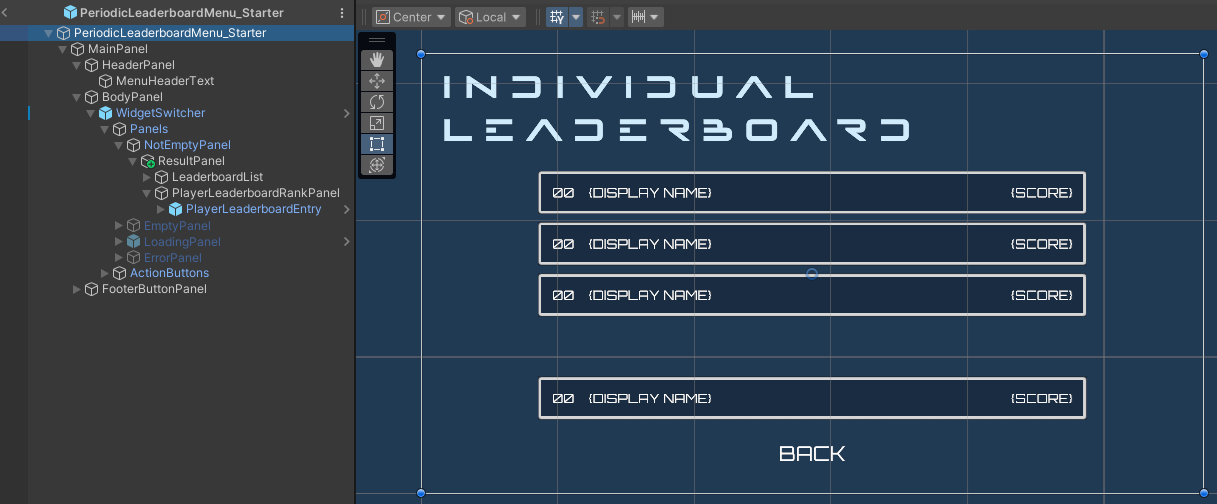

  • LeaderboardMenuCanvas_Starter: A UI menu that displays the ranking list of the chosen leaderboard.
    • CS file: /Assets/Resources/Modules/LeaderboardEssentials/Scripts/UI/LeaderboardMenu_Starter.cs
    • Prefab file: /Assets/Resources/Modules/LeaderboardEssentials/Prefabs/LeaderboardMenuCanvas_Starter.prefab

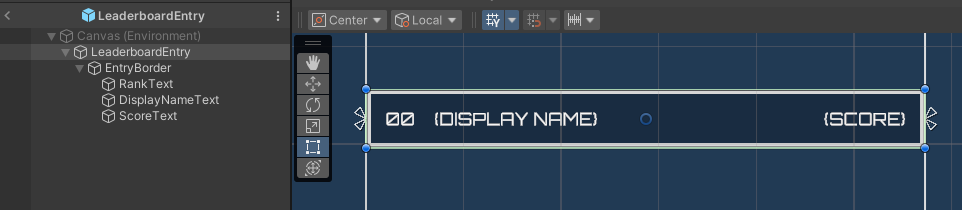

  • RankingEntryPanel: A UI component to hold the ranking information.
    • CS file: /Assets/Resources/Modules/LeaderboardEssentials/Scripts/UI/Components/RankingEntryPanel.cs
    • Prefab file: /Assets/Resources/Modules/LeaderboardEssentials/Prefabs/Components/RankingEntryPanel.prefab
  • LeaderboardItemButton: A UI component that is used for the leaderboard options button.
    • Prefab file: /Assets/Resources/Modules/LeaderboardEssentials/Prefabs/Components/LeaderboardItemButton.prefab

Ready the UI​

There are some changes needed for adding all Periodic Leaderboard UI, so you will need to add some functionalities in your starter scripts that handle the Leaderboard Cycle Menu and Leaderboard Menu UI.

Add event delegate in Leaderboard Cycle menu​

  1. Open LeaderboardCycleMenu_Starter.cs.

  2. Add the Weekly value in the LeaderboardCycleType enum, so you can know which period type you are using since both use a different button.

    public enum LeaderboardCycleType
    {
        AllTime,
        Weekly
    }

  3. Add a delegate and event to get the Parent Transform and Button Prefab to generate the Period button, which will be invoked upon the Leaderboard Cycle Menu starting.

    public delegate void LeaderboardCycleMenuDelegate(Transform leaderboardListPanel, GameObject leaderboardItemButtonPrefab);
    public static event LeaderboardCycleMenuDelegate onLeaderboardCycleMenuActivated = delegate { };
    private void Start()
    {
        ...
        onLeaderboardCycleMenuActivated.Invoke(leaderboardListPanel, leaderboardItemButtonPrefab);
    }

Add event delegates in Leaderboard menu​

  1. Open LeaderboardMenu_Starter.cs.

  2. Create a delegate to get the Leaderboard Menu Transform and the available Cycle Ranking.

    public delegate void LeaderboardMenuDelegate(LeaderboardMenu_Starter leaderboardMenu, UserCycleRanking[] userCycleRankings = null);

  3. Prepare some events to add additional processes for displaying the ranking list and user ranking.

    public static event LeaderboardMenuDelegate onDisplayRankingListEvent = delegate { };
    public static event LeaderboardMenuDelegate onDisplayUserRankingEvent = delegate { };

  4. Modify the DisplayRankingList() function to invoke the onDisplayRankingListEvent event.

    private void DisplayRankingList()
    {
        ...
        onDisplayRankingListEvent.Invoke(this);
    }

Enable starter mode​

  1. In the Unity Editor, open the PeriodicLeaderboardEssentialsAssetConfig in the Inspector. You can find this file in Assets/Resources/Modules/PeriodicLeaderboard/PeriodicLeaderboardEssentialsAssetConfig.asset.

  2. In the Inspector, below the Tutorial Module Starter category, make sure the Is Starter Active is ticked.

    Unity Inspector with the Periodic Leaderboard Essentials Asset Config file checking is Starter Active Unity Byte Wars weekly leaderboard

note

At this point, if you try to play the game, you will not see the periodic leaderboard button in the leaderboard cycle selection menu yet. This is expected and will be resolved later in this module.
